Installation Photo Documentation

Date *

Contact Name *

Email *

Contact Number *

Address *

Team *

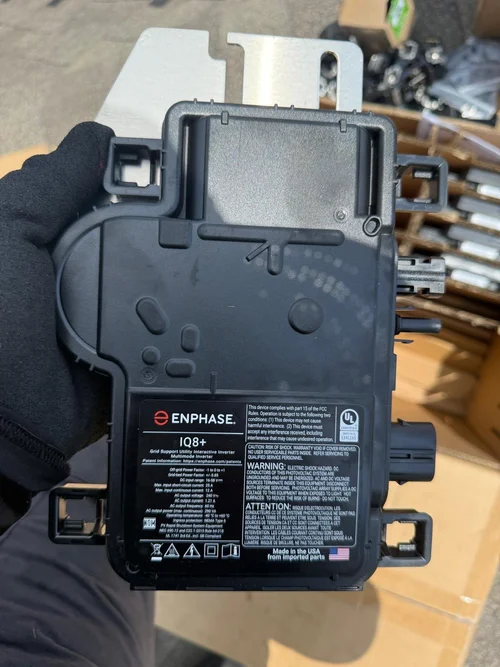

P1) Legible serial number for micro inverter *

Maximum file size: 5 MB

Example: — P1) Serial Number for micro inverter example

P2) IQ Combiner label serial # on the Enphase envoy. *

Maximum file size: 5 MB

P3) String map *

Maximum file size: 5 MB

For Tesla inverters, need MCI location on a string map & a picture of the MCI installed

P4) Module Label: Picture of manufacturer label *

Maximum file size: 5 MB

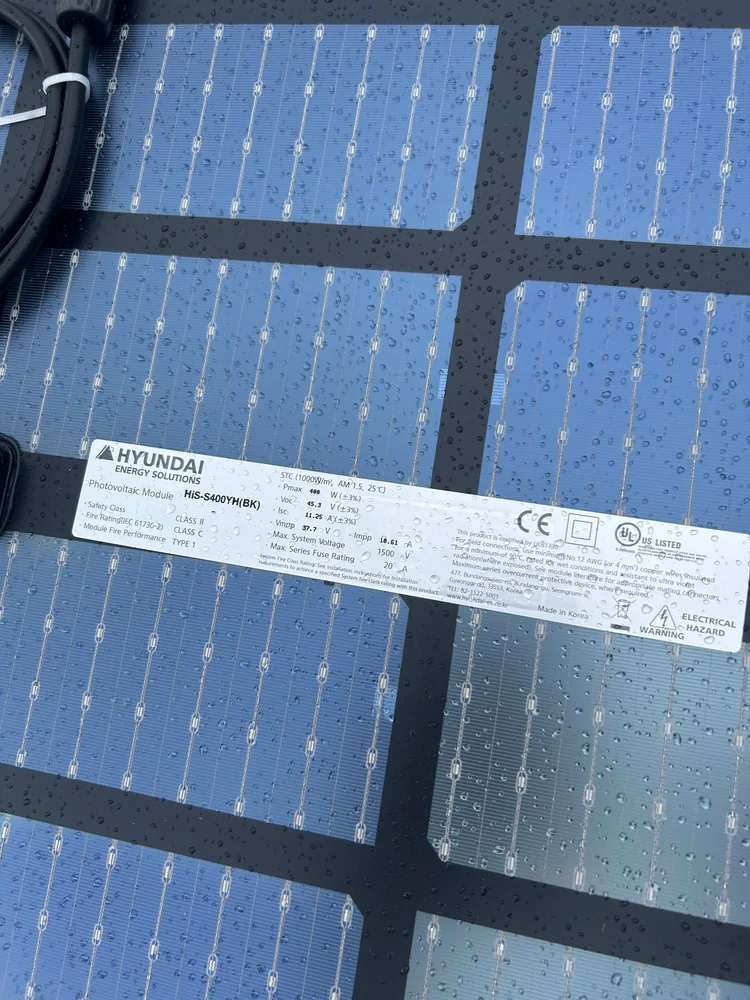

Picture of the manufacturer label

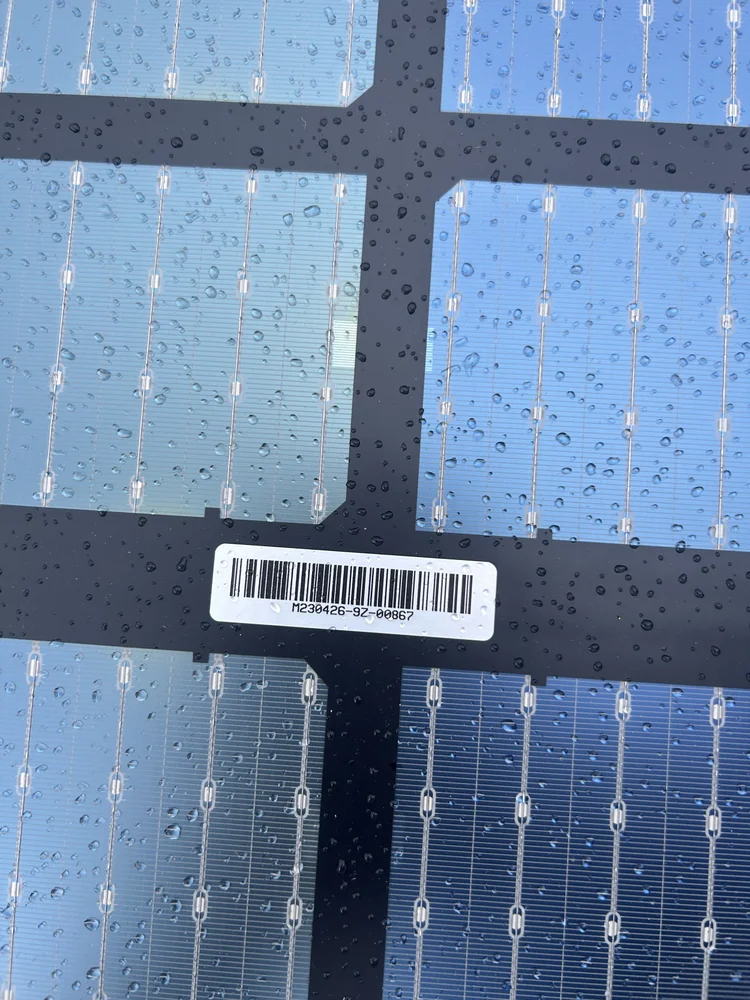

P5) Module Serial # : Single serial # picture from 1 of the modules installed onsite *

Maximum file size: 5 MB

Additionally, we need a single serial number picture from one of the modules being installed onsite. For O&M purposes a single SN helps us track down the lot of modules with the manufacturer, should there be a module level failure or recall.

P6) Existing site damage (if applicable) that may be a workmanship liability.

Maximum file size: 5 MB

Any pre-existing damage or conditions such roof damage, altered satellite dishes, gutters, or other pre- existing damage that may be a workmanship liability in the project work area. Documentation helps protect installers from workmanship claims

Roof / Mounting System

R1) Close up of attachments *

Maximum file size: 5 MB

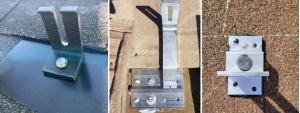

Racking Systems with or without Flashing: provide photos showing properly installed flashing to manufacturer specs, along with sealant application

R2) Rail w/Micro inverters + EGC installed + Wire Management *

Maximum file size: 5 MB

Provide pullback of e/mounting plane where all attachments, rail, micro inverters are installed, w/completed wire management

Screenshot Rail with Optimizer:Micro inverters2024 10 28 at 10.16.31 AM

R3) Complete Array(s) w/ Rail Trimmed *

Maximum file size: 5 MB

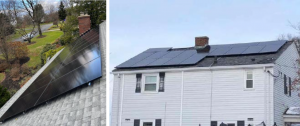

Modules must be visible W/low pitch roofs, or very tall homes, take photos of e/ array from the roof, accounting for every panel Rail must be trimmed 1 Pic for e/array

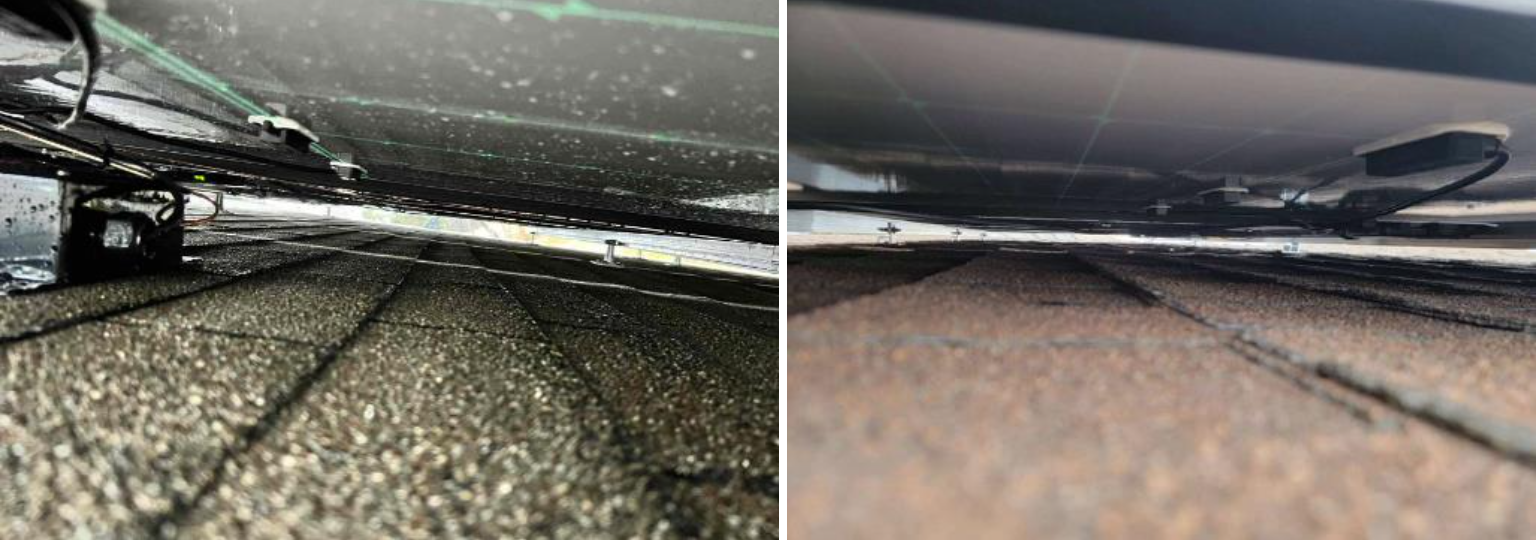

R4) Under Array Wires should not touch roof. 1 Pic per array *

Maximum file size: 5 MB

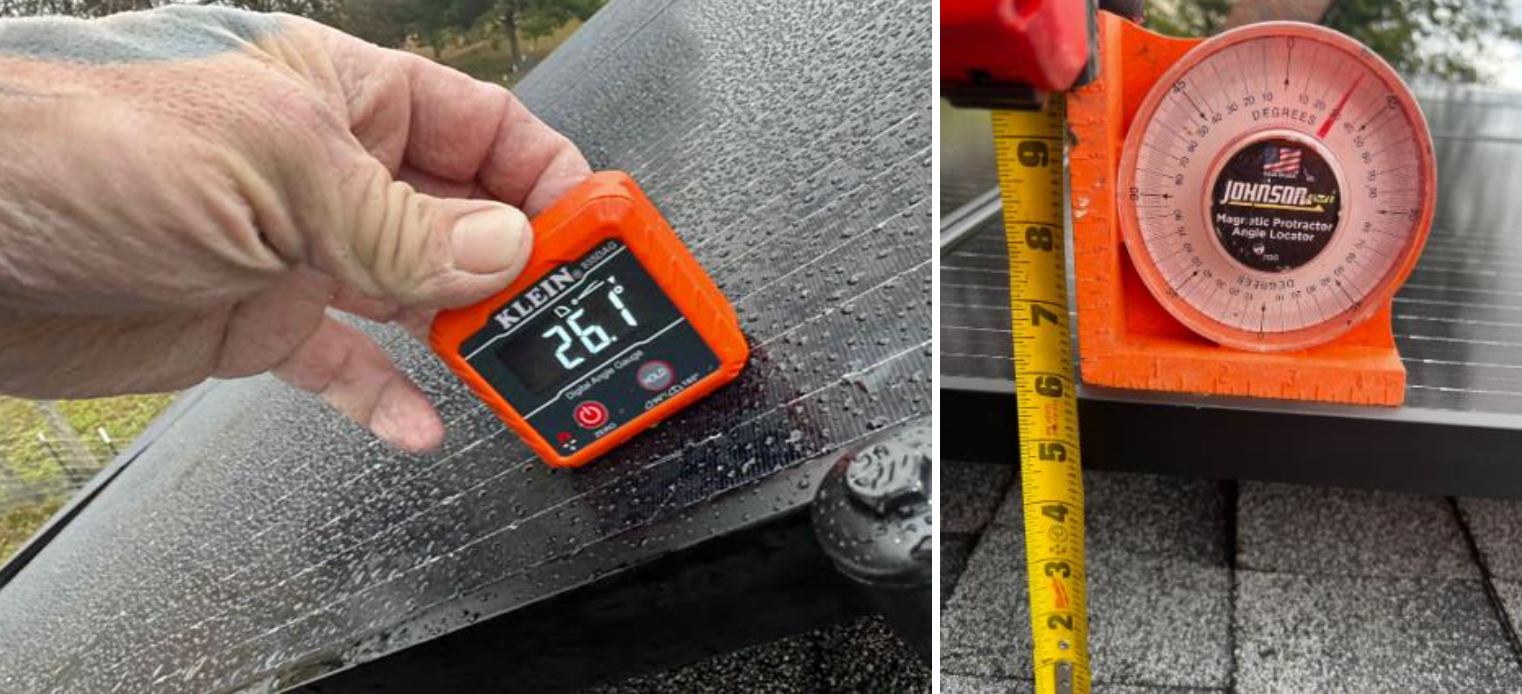

R5) Tilt taken on the module itself, not on roof surface.1 Pic/unique roof pitch. *

Maximum file size: 5 MB

R6) Rooftop Junction Box *

Maximum file size: 5 MB

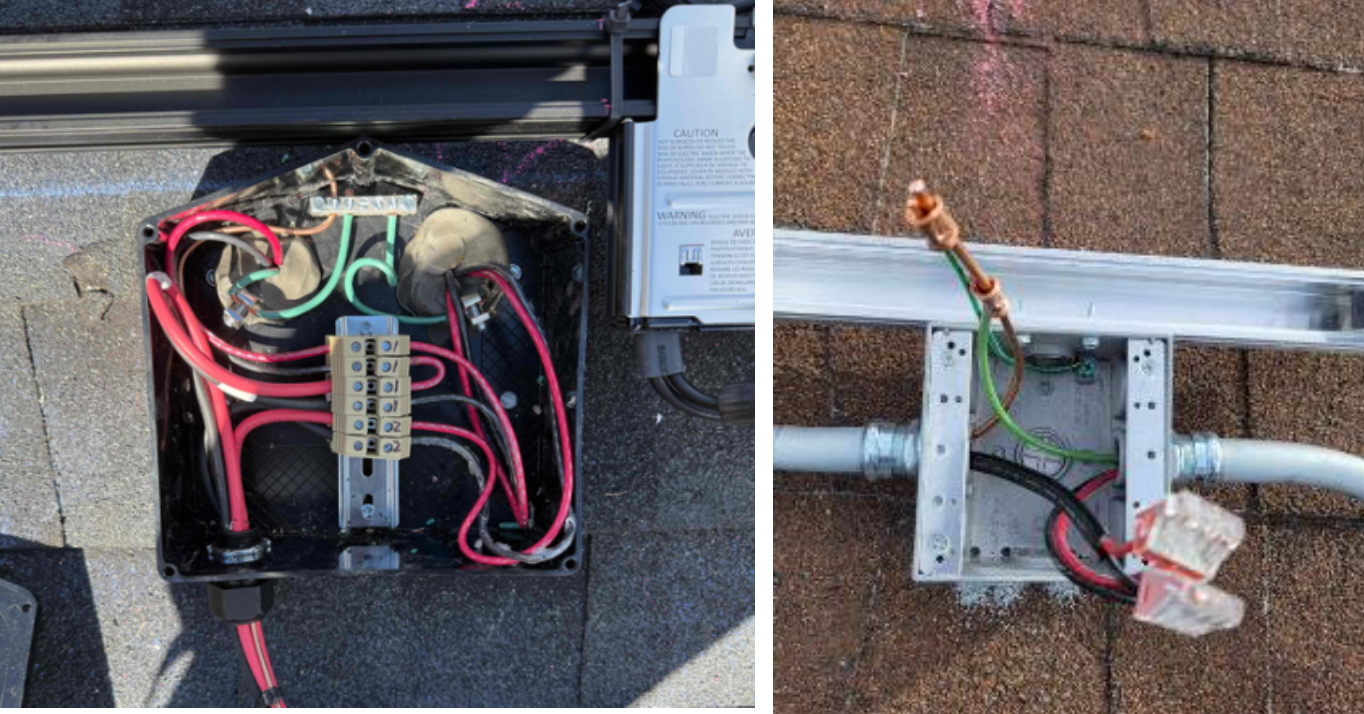

Photo of open junction box with completed wiring and bonding. Include closeup of the conductor terminated, or the transition through conduit J box should not have any more than 2″ of exposed conductors outside of the array. Any exposed conductor over 2″ will have to be installed in a conduit 1 Photo for each junction box

Electrical

E1) Enphase IQ Combiner box showing COMPLETE AC wiring inside of combiner box should be shown, including the breakers from the branch circuits *

Maximum file size: 5 MB

If Enphase, photo of open combiner box showing complete AC wiring inside of combiner box should be shown, including the breakers from the branch circuits

E2) Main Breaker & Busbar rating *

Maximum file size: 5 MB

Close up of main breaker with rating clearly visible

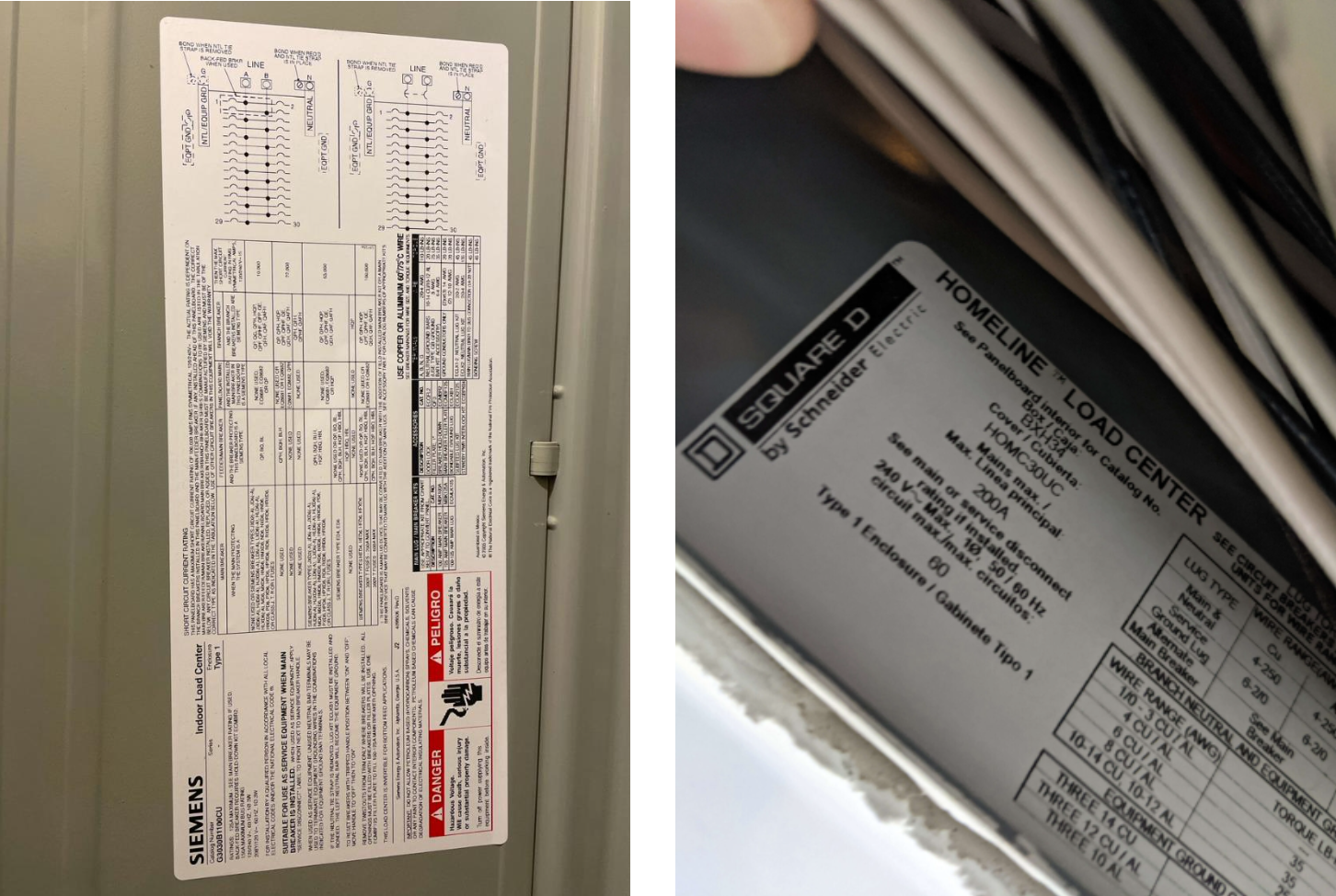

E3) Main Panel Busbar rating. Panel label/sticker with rating clearly visible *

Maximum file size: 5 MB

Close up of main breaker with rating clearly visible

E4) Point of Interconnection *

Maximum file size: 5 MB

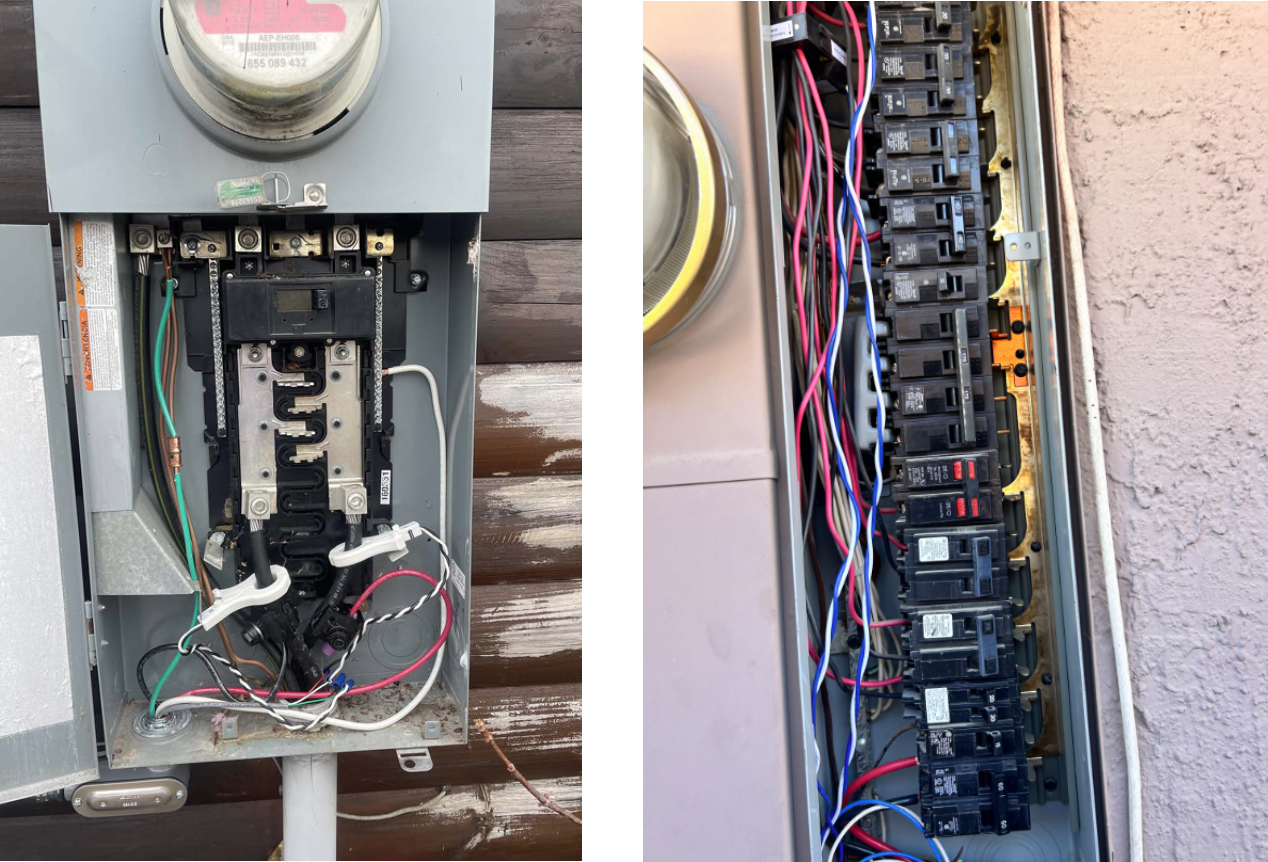

First Photo: contextual photo such as a pull back photo Second photo: Insulated piercing connectors (IPCS), parallel lugs, distribution blocks, breakers, and wire terminations (If applicable) When using Hoffman or load side taps, a picture of downstream sub panel with OCPD rating clearly visible is required

E5) Pull back of Balance of System *

Maximum file size: 5 MB

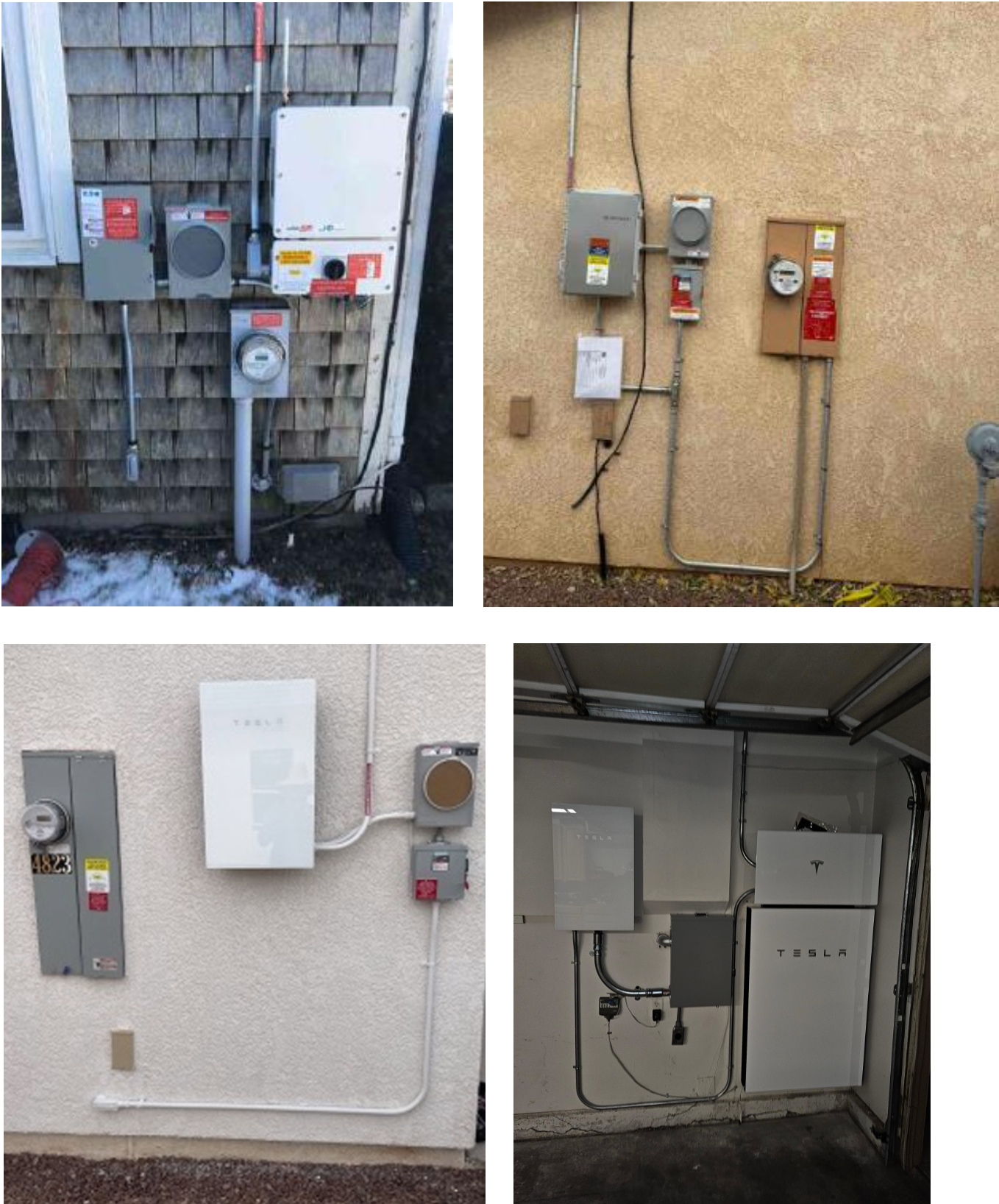

Photo(s) showing the complete BOS equipment installed Ideal photos are pullback photos showing full context of the BOS area

E6) Production Meter -or- CTs *

Maximum file size: 5 MB

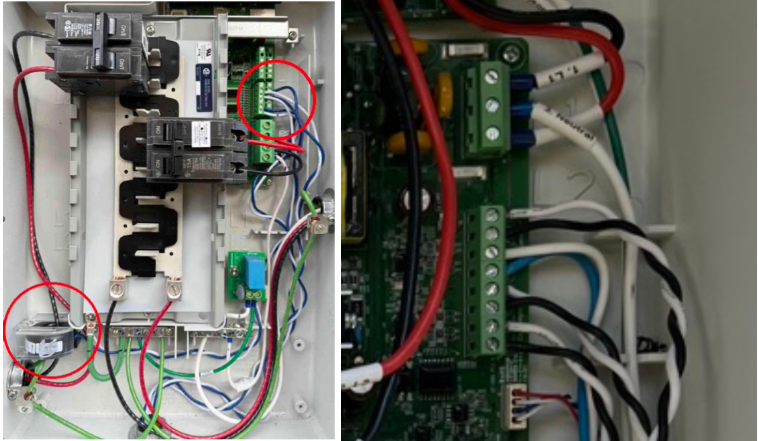

Photo of Production Meter or Production CTs Complete photo where we’re able to see the complete wiring in IQ combiner box

E7) Consumption Metering (CTs) *

Maximum file size: 5 MB

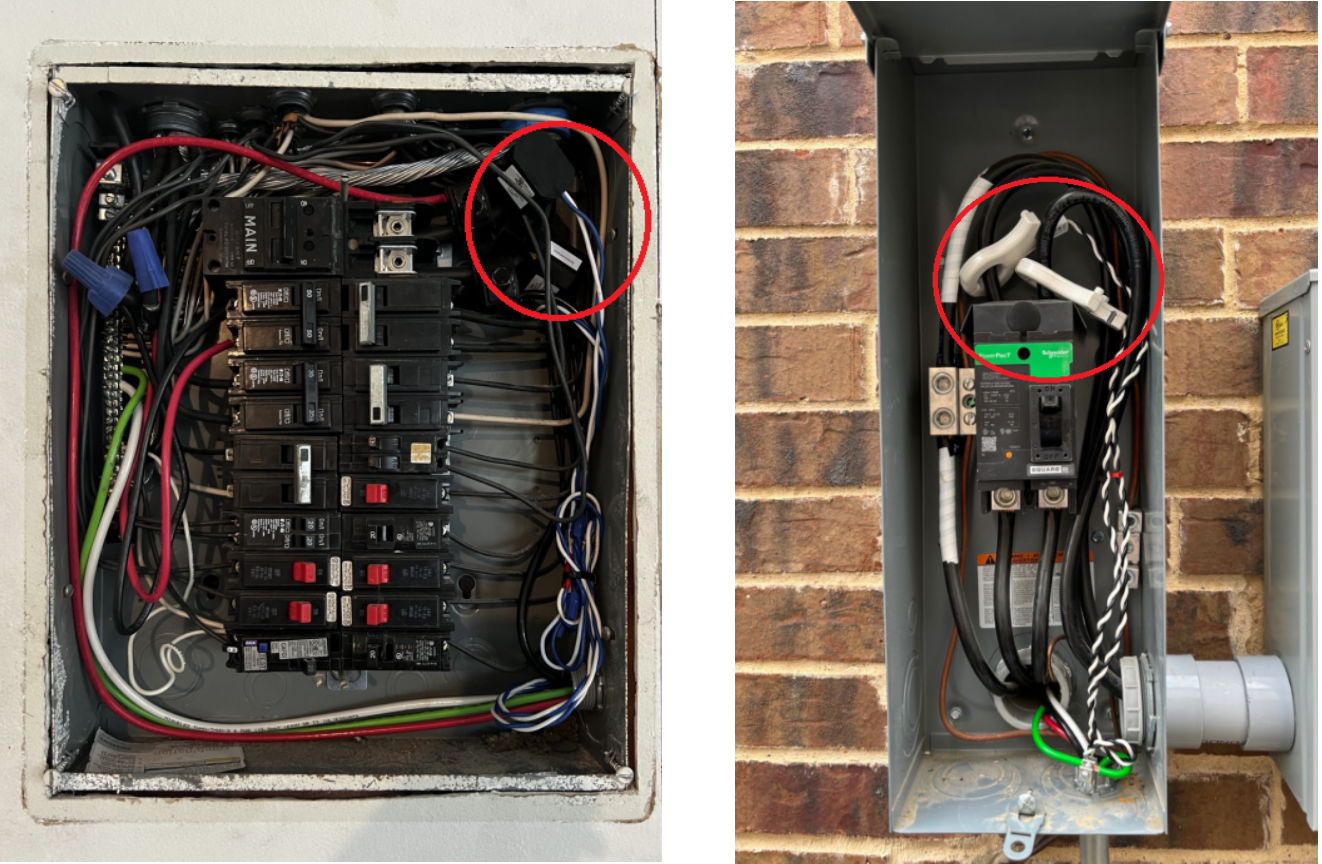

First Photo: CTs on service feeders, with direction of CTs visible Second Photo: Close up of CT terminal lugs with the correct CT phases landed in the correct terminals

E8) Fused AC Disconnects (If applicable)

Maximum file size: 5 MB

Photo only required if applicable (If AC Disconnects are fused) Show the completed wiring, including terminations, bonding and clearly legible fuse ratings

E9) Combiner Sub Panels (If applicable)

Maximum file size: 5 MB

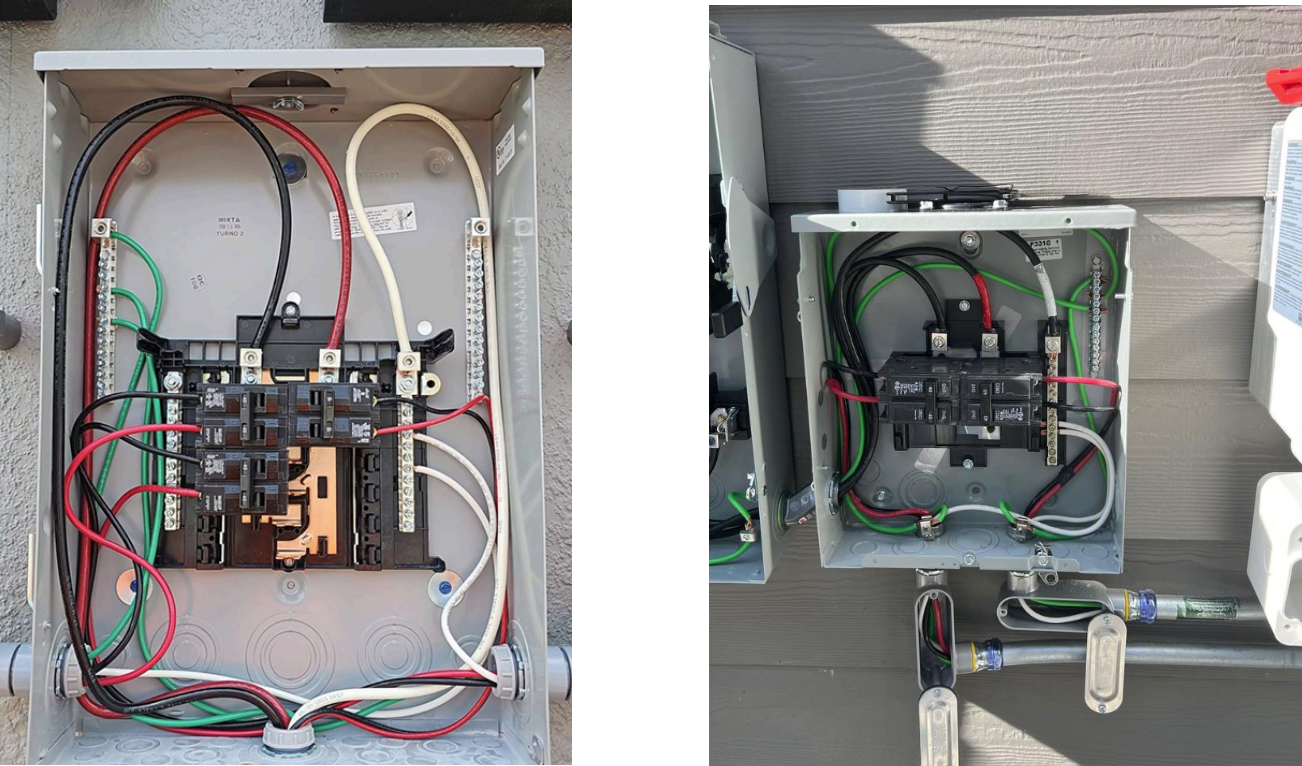

Photos only required if applicable For large systems requiring multiple inverters, IQ Combiner boxes, or large sub panels for branch circuits: each sub panel should be shown fully wired, with legible closeups of breaker ratings, and the panel’s bus rating label

System Commissioning

System Commissioning *

Maximum file size: 5 MB

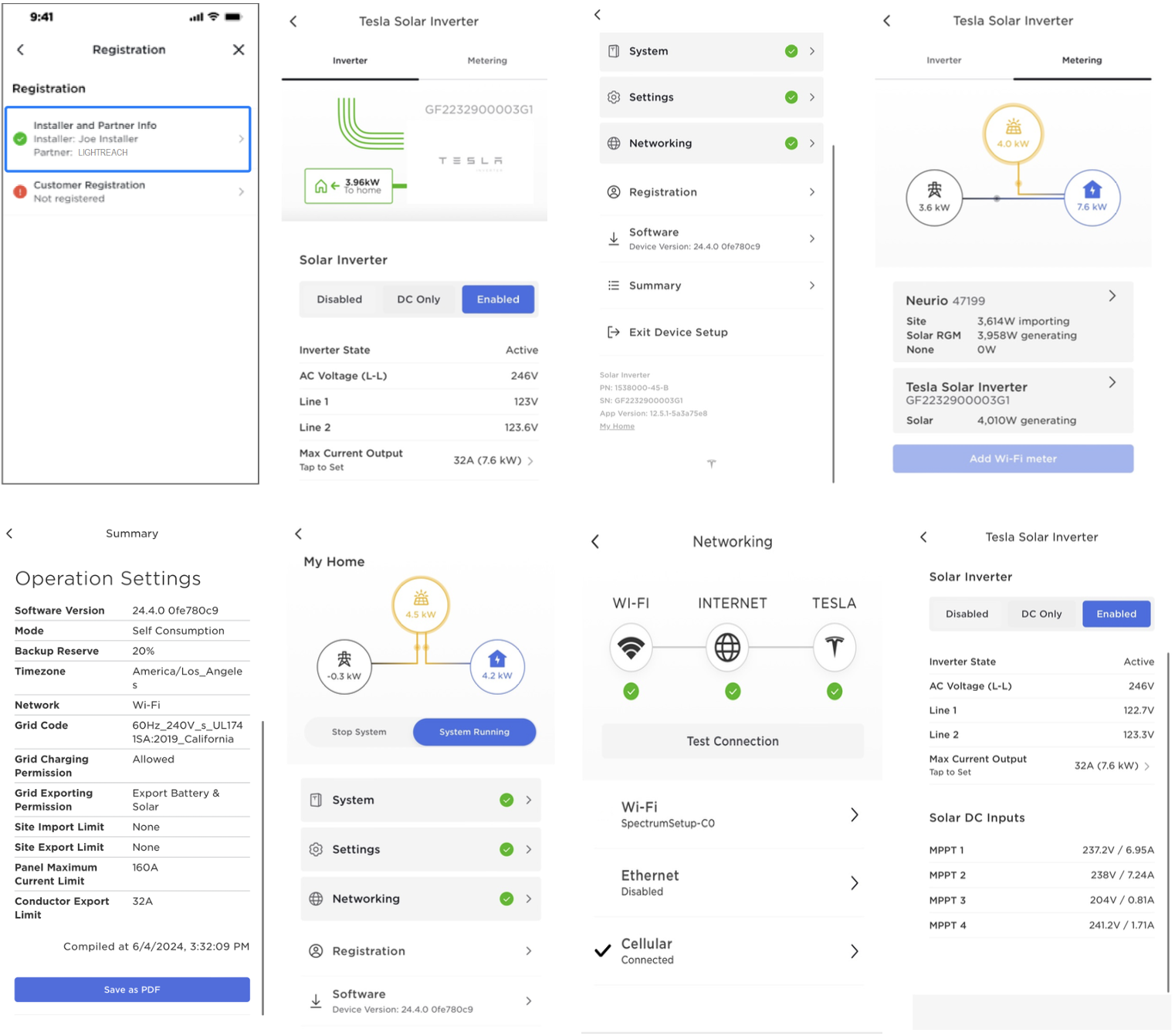

Screenshots of the product commissioning application should be shown fully paired with active communication

EXTRA PICTURES

Maximum file size: 5 MB

Screenshots of the product commissioning application should be shown fully paired with active communication

ANY INFORMATION YOU THINK MAY BE IMPORTANT TO ADDRESS.
